Curious...what are the dimensions of the openings in your top panel? Number and width of cross braces? I am currently working on a similar depth acrylic and am making changes to the top layout.There is a 48" 2x 54w ho t5's with 1 powerglo bulb and 1 marineglo bulb, and a 48" 50/50 xho reefbite led fixture over both sides for a total of 324 watts. Its the biggest tank you can make with 1/2" acrylic, only I added a 3/4" piece to the 1/2" for a total of 1 1/4" for the bulkhead fittings.

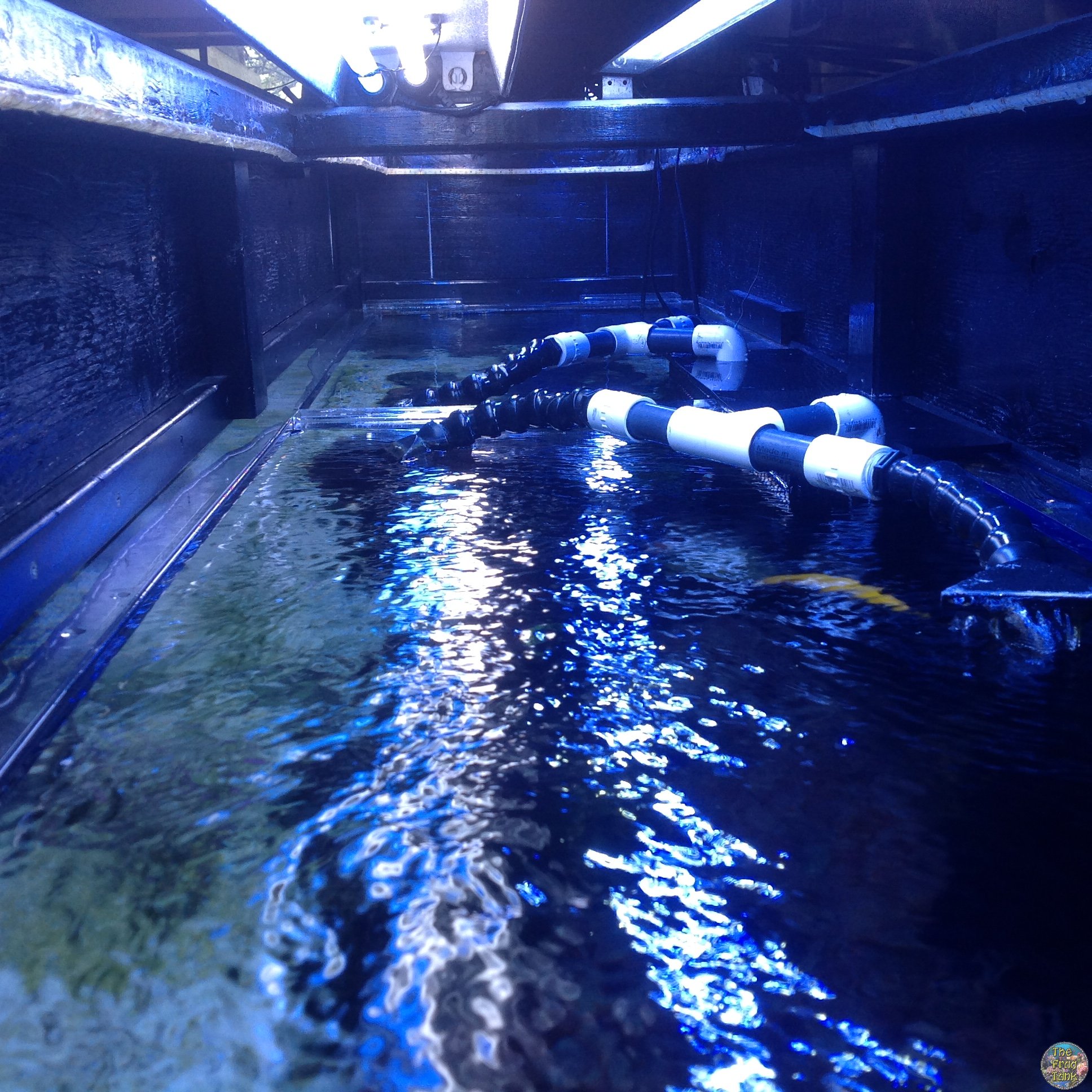

View attachment 7119 You mean the top of the tank, right? Not a the canopy? I put a 2" support piece of acrylic around the whole inisde of the tank. I reinforced the corners with another overlapping piece, and I installed a cross member support in the middle. I took a couple of pictures.
